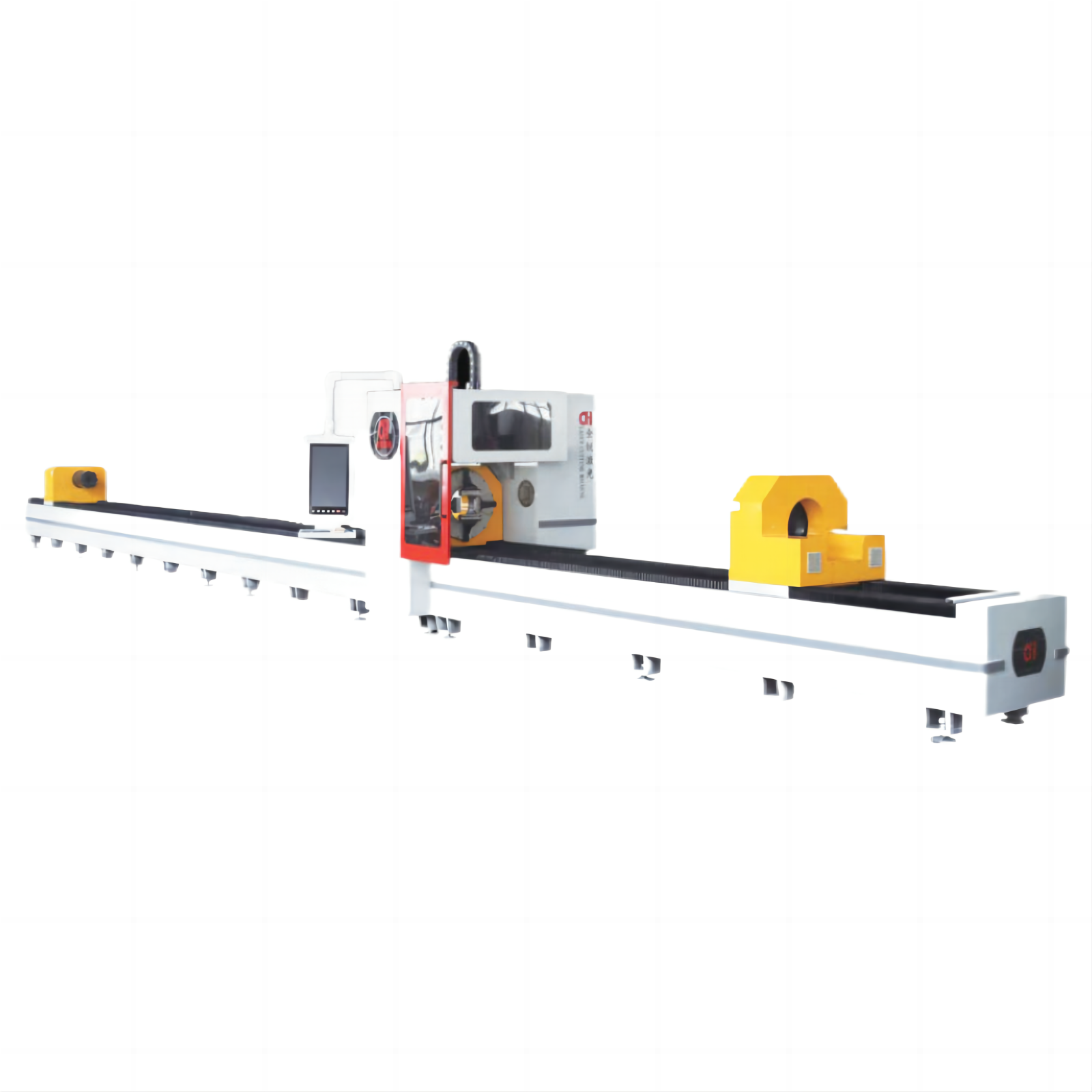

THREE CHUCK LASER PIPE CUTTING MACHINE
THREE CHUCK LASER PIPE CUTTING MACHINE
1.Performance advantage
Super large pipe diameter and strong clamping ability, capable of effectively cutting irregular pipes such as square pipes, round waist pipes, D-shaped pipes, hexagonal pipes, etc;
Diagonal gear transmission, higher transmission efficiency, and no noise;
Automatic material support device solves the problem of deformation during long pipe cutting operation, effectively ensuring support stability;
Innovative three chuck clamping, automatically adjusting the clamping force according to the size of the pipe, ensuring no deformation and stable clamping, improving cutting speed and reducing labor intensity;
Configure an automatic loading and unloading system to achieve automated production.
2.Machine parameters
Equipment type |
QR-T6 |
Laser power |
1500W/2000W/3000W/6000W/12000W |
Maximum linkage speed |
80m/min |
Cutting pipe diameter |
φ20mm-φ500mm |
Cutting pipe length |
6m、9m、12m |
Maximum acceleration |
1G |
