CNC DOUBLE DRIVE HIGH SPEED SLOTTING MACHINE

1.Product features

Slotting machine frame and beam are designed with frame structure, the working surface uses 60mmQ345 low alloy high -strength structural steel,the frame adopts 0235 steel plate, the machine tool overall rigidity is good, durable.

The bed is made of natural gas tempering, eliminate the welding stress deformation reduction equipment. By blasting to ensure the paint coating effect is excellent.

Slotting machine adopts precision copper gear and oblique rack transmission, supplemented by Taiwan silyer roller heavy load linear guide rail, moving speed can be adjusted by frequency, the cutting process is stable and efficient.

Double servo motor, double driven power, improve the stability and speed of the machine.

Slotting machine tool transfer device using SFSR QH ball screw and mute mute rail to ensure high precision.

Slotting machining parts with hydraulic clamping system fixed, slotting speed and ensure strong clamping.

The hydraulic system is equipped with accumulator compensation and relief valve, the motor clearance work, energy saving, hydraulic system safety.

Slotting machine using four cutter" y" slot, so the cutting quantity distribution, reduce the deformation of the workpiece, And the selection of micro cooling system, prolong the service life of the cutter, reduce the production Cost.

Grooving machine can be processed both vertically and horizontally, and has a process to realize the "positive and negative” processing function of the plate.

The use of the slot machine only keyboard input and processing procedures can be completed. According to the operating personnel and the different materials, tum the knob to adjust the process speed, convenient operation.

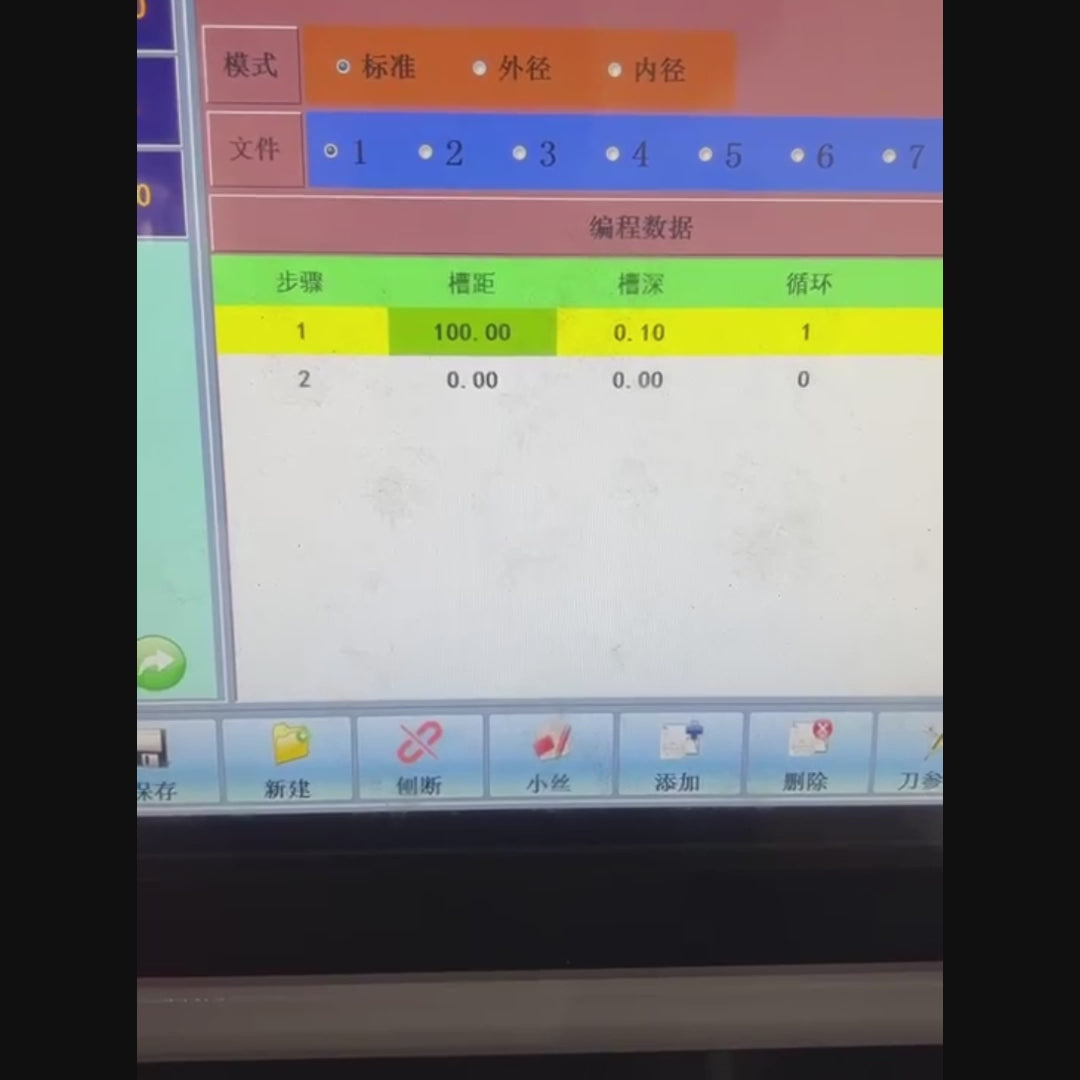

Through the display screen can understand the procedure of processing.

Using sensors to ensure the safety of operators.

The equipment abnormal alarm information display easy maintenance, The use of the slotting machine only when the processing in the processing part and put out the human needs, thus can save labor.

Slotting machine table has self repair function, in the process of use, customers can according to their own requirements,self planing table, ensure the machining accuracy.

2.Technical Parameters

3.Main configuration

4.Product catalog
